Fibolite

Ultra Lightweight Aggregate Blocks

Download Datasheet

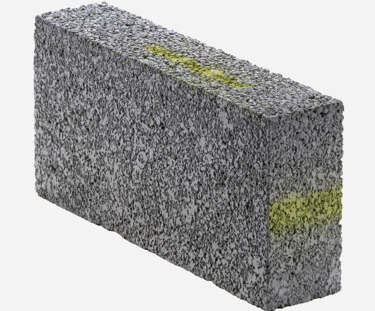

Product Listing 1000X1000 05A 100 FIBOLITE 3.6N 100FL03 01A

Fibolite

Building Type Residential
Block Weight Ultra Lightweight

FIBOLITE is an ultra lightweight load bearing block manufactured from Plasmor's own man-made expanded clay. Expanded clay nodules are produced by sophisticated pyrogenic technology whereby geochemically specific clay is expanded in a rotary kiln at high temperature. The clay nodule is an extremely lightweight granule with a hard vitrified outer shell and an air filled honeycombed inner.

Ultra Lightweight
High Thermal Efficiency
Low Shrinkage
Fire Resistant
Authority
Quality Assured
Excellent Fixability
Easily Cut and Chased
Downloads
Product Feature

FIBOLITE blocks are extremely lightweight offer one hand lift laying have excellent thermal efficiency values provide an ideal key for plaster/render and accept fixings readily. FIBOLITE blocks are especially suitable for house building extensions repair maintenance and refurbishment projects. The majority of the blocks in the FIBOLITE range comply with the 20kg single lift requirements of the Construction (Design and Management) Regulations.





Applications
  • External Walls – outer and inner leaf
  • Internal loadbearing walls
  • Internal partition walls
  • Column encasement
  • Walls below DPC
Properties & Performance
  • Dry Density
    3.6N - 850 Kg/m³ 7.3N - 950 Kg/m³
  • Strength
    100mm - 3.6N/mm², 100mm - 7.3N/mm² , 140mm - 3.6N/mm², 140mm - 7.3N/mm² , 190mm - 3.6N/mm², 215mm - 7.3N/mm²
  • Thermal Value
    3.6N - K=0.24W/m²K, 7.3N - K=0.28W/m²K
Dimensions
  • Metric Sizes & Types
    440mm x width x 215mm work size, 450mm x width x 225mm co-ordinating size
  • Solid
    100mm, 140mm, 190mm, 215mm
Pack Information
  • Metric Pack Sizes
    100mm - 9.6m², 140mm - 6.4m², 190mm - 4.8m², 215mm - 4.0m²

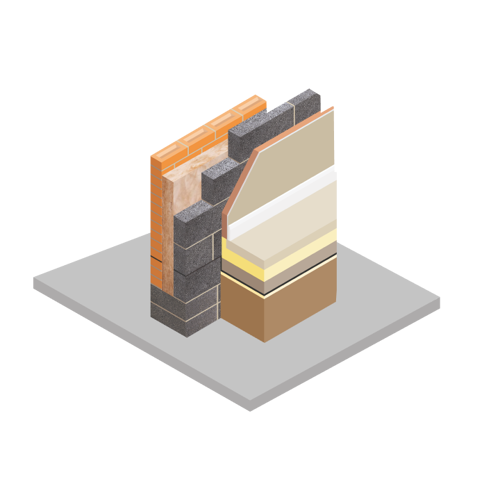

Product Inner Banner 2000X997 05 Fibolite Selector Image

Fibolite Building Block

FIBOLITE is an ultra lightweight load bearing block manufactured from Plasmor's own man-made expanded clay. Expanded clay nodules are produced by sophisticated pyrogenic technology whereby geochemically specific clay is expanded in a rotary kiln at high temperature. The clay nodule is an extremely lightweight granule with a hard vitrified outer shell and an air filled honeycombed inner.

Lightweight

Ultra Lightweight

Low Shrinkage

Low Shrinkage

High Thermal Efficiency

High thermal efficiency
