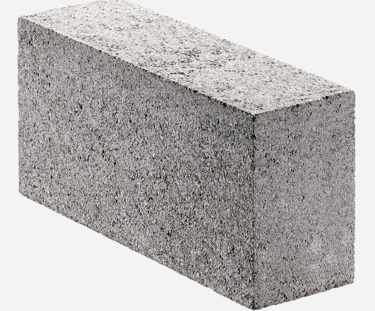

PLASCON is a dense aggregate general purpose concrete building block manufactured in Solid Hollow and Cellular units and in an extensive range of strengths. The high density and high strength of PLASCON provides high levels of durability and robustness loadbearing capacity and fixability. Sound insulation of PLASCON particularly in Multicore format is impressive. Multicore blocks to 140mm comply with the 20kg single lift requirements of the Construction (Design and Management) Regulations.

PLASCON is manufactured from crushed limestone aggregate recycled aggregates and pulverized fuel ash. They are plain ended light buff in colour and available in Open Texture and paint grade quality Close Texture which accepts direct painting for an attractive smooth and low maintenance finish.



APPLICATIONS

External Walls – outer and inner leaf

Interior partition walls

Reinforced walls

Party walls

Flanking walls

Column encasement

Walls below DPC

Suspended Floors – Beam and Block

PROPERTIES AND PERFORMANCE

  • Dry Density

    1900 Kg/m³

  • Strength

    7.3N/mm² and 10.4N/mm²

    Higher strengths available on request

  • Thermal Value

    K – 1.13W/m°C

METRIC SIZES AND TYPES

440mm x width x 215mm work size

450mm x width x 225mm co-ordinating size

SOLID • 75mm • 90mm • 100mm • 140mm • 190mm • 215mm

HOLLOW/CELLULAR • 100mm • 140mm • 190mm • 215mm

MULTICORE • 140mm



METRIC MODULAR SIZES AND TYPES

390mm x width x 190mm work size

400mm x width x 200mm co-ordinating size

SOLID • 90mm • 100mm • 140mm • 190mm

HOLLOW/CELLULAR • 100mm • 140mm • 190mm

METRIC PACK SIZES

Solid

75mm 9.0m²

90mm 7.8m²

100mm 7.2m²*

140mm 4.8m²

190mm 3.6m²

215mm 3.0m²

*Pack sizes may vary between divisions



Hollow

100mm 9.6m²

140mm 6.4m²

190mm 4.8m²

215mm 3.0m²
