STRANLITE is a range of lightweight aggregate blocks for general purpose use in all types of Housing Industrial and Commercial building applications.

Manufactured from high quality approved lightweight aggregates STRANLITE is available in an extensive range of strengths and in Standard or Paint Grade finish.

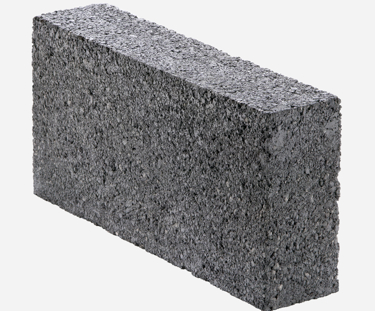

STRANLITE blocks have a granular surface texture and are plain ended and grey in colour. They are robust and durable Building Regulation compliant and provide excellent fixability.

STRANLITE is available to download on the bimstore.



APPLICATIONS

External Walls – outer and inner leaf

Internal loadbearing walls

Internal partition walls

Party/Flanking walls

Walls below DPC

Semi exposed walls

Suspended Floors – Beam and Block



PROPERTIES AND PERFORMANCE

  • Dry Density



    4.2N  - 1350 Kg/m³



    7.3N  - 1400 Kg/m³



    10.4N  - 1450 Kg/m³



    17.5N  - 1600 Kg/m³



    22.5N  - 1600 Kg/m³

  • Strength



    75mm  -  7.3N/mm²



    100mm  -  4.2N/mm²,
    7.3N/mm², 10.4N/mm²,
    17.5N/mm² and 22.5N/mm²



    140mm  -  7.3N/mm²,
    10.4N/mm², 17.5N/mm²
    and 22.5N/mm²



    190mm  -  7.3N/mm²



    100mm Flooring Block
    -  3.5N/mm²

  • Thermal Value


    4.2N  -  K – 0.41W/m°C



    7.3N  -  K – 0.41W/m°C



    10.4N  -  K – 0.43W/m°C



METRIC SIZES AND TYPES

440mm x width x 215mm work size

450mm x width x 225mm co-ordinating size

SOLID  •  75mm  •  100mm  •  140mm  •  190mm



FLOORING BLOCK • 100mm

METRIC PACK SIZES

75mm  -  12.0m²

100mm  -  9.6m²

140mm  -  6.4m²

190mm  -  4.8m²
