Synerg.Eco Paint Grade

Combines recycling, strength and sustainability

Download Datasheet
100Mm Pg

Synerg.Eco Paint Grade

Building Type Commercial
Block Weight Lightweight

STRANLITE PAINT GRADE is a range of lightweight aggregate load bearing blocks suitable for locations where a close textured face is required for direct painting to give an attractive smooth and low maintenance finish.

Manufactured from 100% recycled or reclaimed aggregates, Stranlite Synerg.Eco Paint Grade satisfies sustainability and environmental credentials where specified, whilst complying with thermal and acoustic building regulations and is ideal for use in industrial, commercial and public sector building applications.

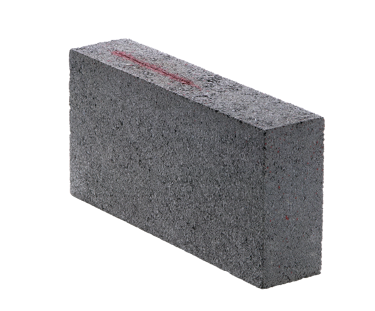

Stranlite Synerg.Eco Paint Grade blocks are grey in colour, plain ended, available as 100mm and 140mm solid, finely textured blocks.

Find stockist
Lightweight
High Thermal Efficiency
Fire Resistant
Good Sound Insulation
Loadbearing
Readily Accepts Direct Painting
Low Shrinkage
Authority
Easily Cut & Chased
Excellent Fixability
Downloads
Applications
  • External Walls – outer and inner leaf
  • Internal loadbearing walls
  • Internal partition walls
  • Semi exposed walls
Properties & Performance
  • Mean Compressive Strength
    7.3N/mm²
  • Thermal Value (at 3% moisture)
    k = 0.41W/m²K for 7.3N/mm² Stranlite® Synerg.Eco Paint Grade blocks are Part L compliant*
  • Dry Density
    1400 Kg/m³
  • Strength
    100mm - 7.3N/mm² and 10.4N/mm², 140mm - 7.3N/mm² and 10.4N/mm², 190mm - 7.3N/mm²
  • Sound Insulation
    Stranlite® Synerg.Eco Paint Grade blocks comply with Part E and Robust Details for floors and walls*
  • Sheer Bond Strength
    0.15N/mm²
  • Moisture Movement
    Not greater than 0.6mm/m*
  • Fire Resistance
    Stranlite® Synerg.Eco Paint Grade is A1 Non-combustible classification as defined in BS EN 13501-1
  • Fixability
    Stranlite® Synerg.Eco Paint Grade blocks accept direct nailing and are easy and speedy to drill and plug
  • Mortar Designations
    Class (iii) for walls above dpc by volume
    Cement : Lime Sand 1 : 1 : 6
    Cement : Sand 1 : 5 to 6
Dimensions
  • Metric Sizes & Types
    440mm x width x 215mm work size, 450mm x width x 225mm co-ordinating size
Pack Information
  • 100mm
    9.6m²
  • 140mm
    6.4m²
