Aglite Ultima

The Definitive House-builder Block

Download Datasheet

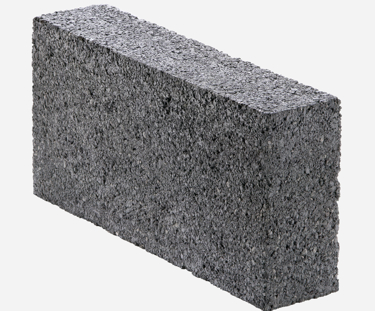

Product Listing 1000X1000 06 100 AGLITE 4

Aglite Ultima

Building Type Commercial, Residential
Block Weight Ultra Lightweight

AGLITE ULTIMA is open textured to accept plaster/render, is plain ended and grey in colour and is the cost effective housebuilder block of choice.

Find stockist
Lightweight
Low Density
High Thermal Efficiency
Fire Resistant
Good Sound Insulation
Load Bearing
Accepts Plaster & Paint Without Bonding Coat
Low Shrinkage
Authority
Easily Cut & Chased
Excellent Fixability
Downloads
Product Features

AGLITE ULTIMA is a range of low density lightweight load bearing blocks manufactured using a mix of Plasmor's own man-made expanded clay and high quality lightweight aggregates. Available in a range of strengths. Aglite Ultima complies with all prevailing regulations including Part L, Part E, Robust Details E-WM-12 E-WM-17 E-WM-22 E-FC-4. The 100mm block has a one hand lift of 11.5kg so laying rates are faster and safer.





Applications
  • External Walls – outer and inner leaf
  • Internal loadbearing walls
  • Internal partition walls
  • Party walls
  • Walls below DPC (7.3N only)
  • Internal walls
  • Suspended floors - Beam and Block
Properties & Performance
  • Dry Density
    4.2N - 1050 Kg/m³, 7.3N - 1050 Kg/m³, 10.4N - 1150 Kg/m³
  • Strength
    100mm - 4.2N/mm², 100mm - 7.3N/mm², 100mm - 10.4/mm², 140mm - 7.3N/mm², 140mm - 10.4/mm²
  • Thermal Value
    4.2N - K – 0.31W/m²K , 7.3N - K – 0.31W/m²K, 10.4N - K – 0.36W/m²K
Dimensions
  • Metric Sizes & Types
    440mm x width x 215mm work size, 450mm x width x 225mm co-ordinating size
  • Solid
    100mm, 140mm
Pack Information
  • Metric Pack Sizes
    100mm - 9.6m², 140mm - 6.4m²

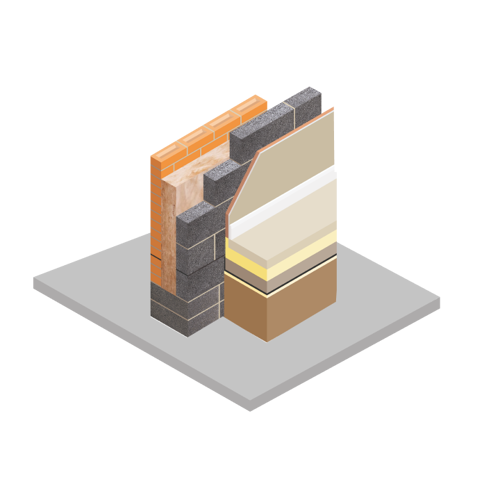

Product Inner Banner 2000X997 06 Aglite Ultima Selector Image
Aglite

Using Plasmor Aglite Ultima Blocks

Aglite Ulitima is a low density, lightweight load bearing block manufactured using a mix of Plasmor’s own man-made expanded clay and high quality lightweight aggregates.

Lightweight

Lightweight

Low Shrinkage

Low Shrinkage

High Thermal Efficiency

High thermal efficiency

Download brochure

Downloads

Aglite Ultima Building Blocks

Aglite Ultima Building Blocks

Download brochure
