STRANLITE is a comprehensive range of lightweight aggregate blocks for general purpose use in all types of Housing Industrial and Commercial building applications. Manufactured from high quality approved lightweight aggregates in Solid Hollow or Cellular units STRANLITE is available in an extensive range of strengths and in Standard or Paint Grade finishes.

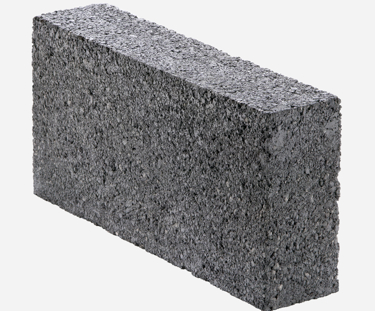

STRANLITE blocks have a granular surface texture and are plain ended and grey in colour. They are robust and durable Building Regulation compliant and provide excellent fixability.

STRANLITE is available to download on the bimstore.



APPLICATIONS

External Walls – outer and inner leaf

Internal loadbearing walls

Internal partition walls

Party/Flanking walls

Walls below DPC

Semi exposed walls

Suspended Floors – Beam and Block

PROPERTIES AND PERFORMANCE

  • Dry Density

    4.2N and 7.3N - 1350 to 1400 Kg/m³

    10.4N - 1425 to 1450 Kg/m³

  • Strength

    4.2N/mm² 7.3N/mm² and 10.4N/mm²

    Higher strengths available on request

  • Thermal Value

    K – 0.41W/m°C for 4.2N and 7.3N

    K – 0.43W/m°C for 10.4N

METRIC SIZES AND TYPES

440mm x width x 215mm work size

450mm x width x 225mm co-ordinating size

SOLID • 75mm • 90mm • 100mm • 140mm • 190mm • 215mm

HOLLOW/CELLULAR • 100mm • 140mm • 190mm • 215mm

REVEAL (50mm) • 100mm • 140mm

REVEAL (75mm) • 90mm • 100mm • 140mm

FLOORING BLOCK • 100mm

METRIC PACK SIZES

75mm 12.0m²

90mm 10.4m²

100mm 9.6m²

140mm 6.4m²

190mm 4.8m²

215mm 4.0 m²
