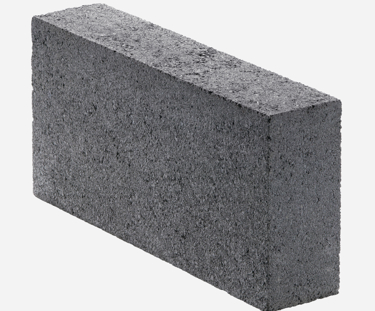

STRANLITE PAINT GRADE is a range of lightweight aggregate load bearing blocks suitable for locations where a close textured face is required for directpainting to give an attractive smooth and low maintenance finish.Manufactured from specially selected and prepared lightweight aggregates

STRANLITE PAINT GRADE are grey in colour, plain ended, finely textured and each block provides one working paint grade finish and end.

STRANLITE PAINT GRADE is widely specified for use in industrial, commercial and public sector building applications.

STRANLITE PAINT GRADE is available to download on the bimstore.



APPLICATIONS

External Walls – outer and inner leaf

Internal loadbearing walls

Internal partition walls

Party/Flanking walls

Semi exposed walls

PROPERTIES AND PERFORMANCE

  • Dry Density

    7.3N - 1350 to 1400 Kg/m³

    10.4N - 1425 to 1450 Kg/m³

  • Strength

    7.3N/mm² and 10.4N/mm²

    Higher strengths available on request

  • Thermal Value

    K = 0.41W/m°C for 7.3N

    K = 0.43W/m°C for 10.4N

METRIC SIZES AND TYPES

440mm x width x 215mm work size

450mm x width x 225mm co-ordinating size

SOLID • 75mm • 90mm • 100mm • 140mm • 190mm • 215mm

HOLLOW/CELLULAR • 100mm • 140mm • 190mm • 215mm

REVEAL (50mm) • 100mm • 140mm

REVEAL (75mm) • 90mm • 100mm • 140mm



METRIC MODULAR SIZES AND TYPES

390mm x width x 190mm work size

400mm x width x 200mm co-ordinating size

SOLID • 90mm • 100mm • 140mm • 190mm • 215mm

HOLLOW/CELLULAR • 100mm • 140mm • 190mm



METRIC PACK SIZES

75mm 12.0m²

90mm 10.4m²

100mm 9.6m²

140mm 6.4m²

190mm 4.8m²

215mm 4.0 m²
